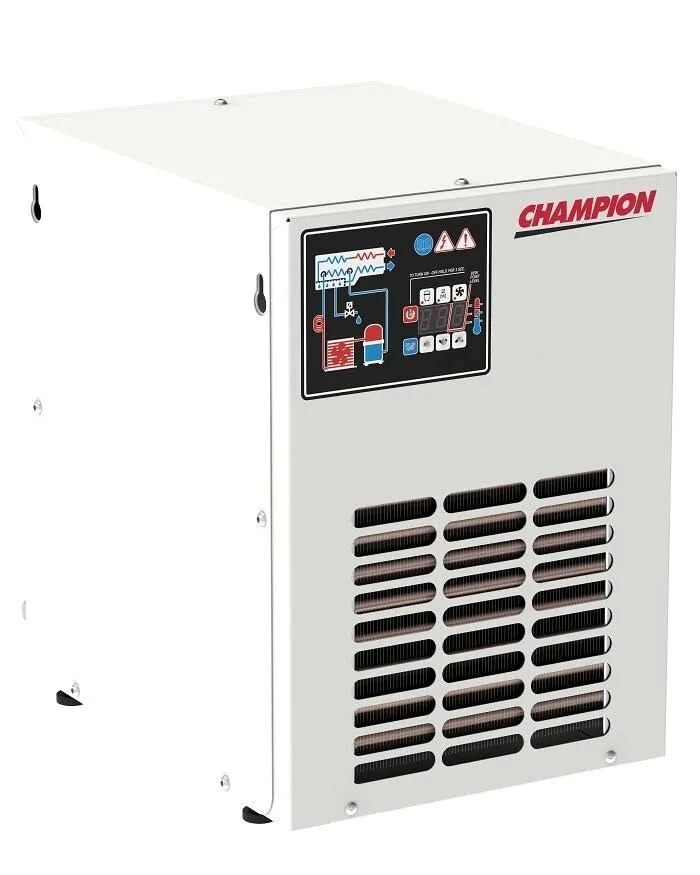

Champion CHR Refrigerated Air Dryers

Champion CHR Refrigerated Air Dryers

Flow Range: 1,200 – 44,000 l/min

Pressure Dewpoint: +3 °C (ISO 8573-1 Class 4)

Working Pressure: Up to 16 bar (HP versions to 50 bar)

Connectivity: RS485 Modbus · iConn remote monitoring

Refrigerated compressed-air dryers with ALU-DRY aluminium heat exchanger — flow rates from 1,200 to 44,000 l/min, Industry 4.0-ready via RS485. CHR delivers a stable +3 °C pressure dewpoint while keeping pressure drop below 0.2 bar across the range.

Key Features

ALU-DRY 3-in-1 aluminium heat exchanger: precooler + evaporator + separator in one cast

Eco-friendly R513A refrigerant gas, lower GWP

Pressure drop < 0.2 bar — protects downstream system efficiency

Electronic no-loss condensate drain standard on all sizes

Industry 4.0 ready with built-in RS485 Modbus port and iConn cloud option

Compact footprint, side-by-side serviceability with single-side access
