Bench-top incubator with dynamically balanced 1“ orbit shaker, heating or cooling versions, PID temperature and RPM indication, balanced air circulation. Key Features Triple eccentric drive, 1” orbit Heating or cooling model options CFC-free cooling system Microprocessor PID with digital RPM Motorized blower air circulation Viewing window with illumination Technical Specifications Speed Range:50–200 RPM (25 mm orbit) Temp. Range (Cooling):2°C to 60°C Temp. Range (Heating):5°C above ambient to 60°C

Vacuum ovens with round and rectangular chambers featuring radiant warm wall heating for uniform temperature, PID control with dual digital indicator, and vacuum to 30“Hg. Regular and GMP models available. Key Features Heaters concealed for smooth chamber surfaces Tempered inner glass viewing window Radiant warm wall heating 304 SS chamber; GMP with SS inside/out Two SS valves for evacuation and purge Food-grade silicone gasket PID controller with PT-100 sensor Technical Specifications Vacuum Range:1” to 30" Hg Temp. Range (Rectangular):up to 250–450°C (model dependent) Temp. Range (Round):up to 250–350°C (model dependent) Construction:304 SS chamber; Regular GI powder coated exterior; GMP full SS

The SCSpro 15 is a high-performance, oil-free scroll vacuum pump designed for clean applications requiring deep vacuum. It features advanced scroll technology with a hermetically sealed design and low maintenance requirements. Welch SCSpro 15 has a built-in self-cleaning air flush that removes liquefied vapors that can condense in pump from a trapped application. Key Features 100% oil-free operation Completely dry running scroll pump Hermetically sealed design Low noise level < 55 dB(A) Minimal maintenance required Compact footprint Air-cooled operation Maintenance-free bearings Technical Specifications Pumping Speed:15.0 m³/h (250 L/min) Ultimate Pressure:0.012 Torr (0.016 mbar) Power Consumption:0.75 kW Noise Level:< 55 dB(A) Operating Temperature:10-40°C Weight:32 kg Inlet Connection:NW 25 Exhaust Connection:NW 16

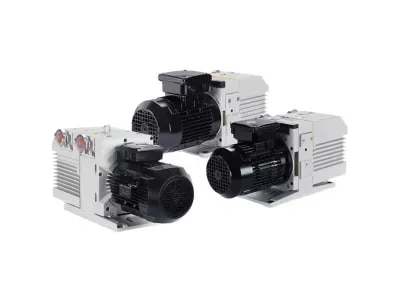

Leybold TRIVAC B oil sealed double stage vane pumps are well known and being used in all areas of vacuum engineering and are equally suited for both industrial production and research applications. The TRIVAC B pumps, used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots vacuum pumps or high vacuum pumps, have the ability of pumping down from the atmosphere. Key Features Dual-stage rotary vane technology Gas ballast valve for vapor handling Anti-suckback protection Low noise level operation Easy maintenance access Long service intervals Technical Specifications Pumping Speed Range: 4.8-75 m³/h Ultimate Pressure:10⁻⁴ mbar Operating Temperature:12-40°C Noise Level:52-65 dB(A) Motor Power:0.37-2.2 kW Oil Capacity:0.5-2 L

The 530 series offers advanced process control capabilities with enhanced durability for industrial applications. Features comprehensive communication options. Key Features Advanced process control Network connectivity High accuracy dispensing Multiple protocol support Intuitive interface CIP/SIP capable Validation package available Technical Specifications Flow Rates: 0.004-3500 ml/min Speed Range:0.1-220 rpm Accuracy:±0.5% Control Options:Manual, Auto, PROFIBUS, EtherNet/IP, PROFINET, RS232/RS485 Display:3.5" Color TFT Protection Rating:IP31, IP66

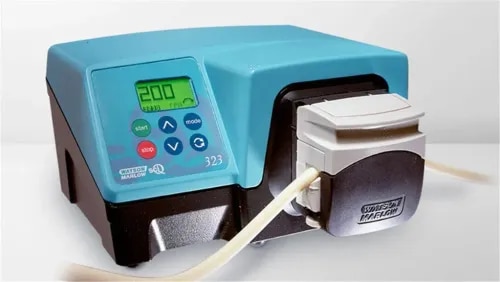

The 300 series delivers reliable performance for laboratory and light industrial applications. Features enhanced control options and durability. Features a chemically resistant ABS top and IP31 protection. Key Features Digital speed control Manual or auto control Easy tube loading Robust construction Multiple pump head options Maintenance-free drive Compact footprint Technical Specifications Flow Rates: 0.002-3000 ml/min Speed Range:0.1-400 rpm Tube Sizes:0.5-8.0mm bore Number of Rollers:4 Control Interface:Membrane keypad; 1ph 100–120/220–240 V 50/60 Hz, 100 VA Protection Rating:IP31

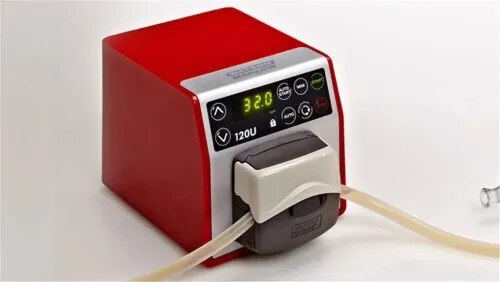

The 100 series offers precise, repeatable low flow rates for laboratory and process applications. Ideal for fluid transfer and metering in various laboratory settings. Key Features Simple tube loading Compact design Manual control Low maintenance Reliable performance Easy to operate Quiet operation Technical Specifications Flow Rates:0.0001-190 ml/min Speed Range:4-400 rpm Tube Sizes:0.5-4.8mm bore Number of Rollers:8 Operating Temperature:5-40°C Power Supply:24 V DC (90–264 V AC via mains transformer)

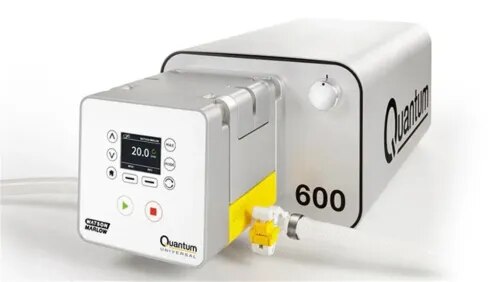

The Quantum pump is specifically designed for single-use bioprocessing applications, offering high accuracy and sterility with reduced validation requirements. Key Features Patented ReNu SU single-use cartridge technology Flow linearity and virtually no pulsation Colour display with intuitive menu 3-level security PIN protection Plug and play sterile connections High control ratio for TFF and HPLC applications Designed for tangential flow filtration and HPLC Technical Specifications Flow Range:5.33 ml/min - 20 L/min Pressure Rating:up to 3 bar (43.5 psi) Accuracy:Manufacturer specified accuracy (see datasheet) Speed control ratio: 4000:1 Control:Remote analogue/digital; local keypad/display options Materials:USP Class VI Sterilization:Gamma irradiated

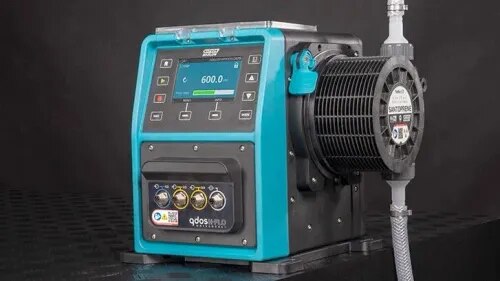

Product Overview Qdos H-FLO offers higher flow rates while maintaining the precision and reliability of the Qdos range. Ideal for larger scale chemical dosing applications. Key Features Flow rates up to 600 L/h RFID pumphead detection to confirm correct pumphead Revolution counter for pumphead service maintenance One common pump drive with multiple pumphead options Network integration (EtherNet/IP, PROFIBUS, PROFINET) Optional pressure sensing kit with configurable alarms Long maintenance intervals and low total cost of ownership Technical Specifications Flow Rates: 0.12 L/h - 600 L/h Pressure Rating: up to 7 bar Accuracy: Manufacturer specified accuracy (see datasheet) Turndown Ratio: Model dependent (see specifications) Power Supply: 100–240 V AC 50–60 Hz, 350 VA Protection Rating: IP66

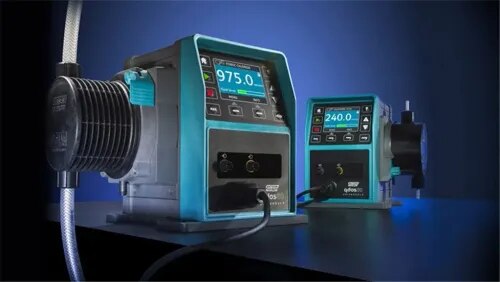

Product Overview The Qdos range provides accurate, linear and repeatable chemical metering with flow maintained right up to 9 bar and long maintenance intervals. Designed to eliminate the need for ancillary equipment and reduce total cost of ownership. Key Features Flow rates from 0.1 to 2000 ml/min at up to 9 bar Simple drop-in installation (eliminates ancillary equipment) No-tools single-component maintenance Reduced cost of ownership compared to diaphragm pumps Accurate, linear and repeatable metering Long maintenance intervals Intuitive interface Technical Specifications Flow Rates: 0.1 - 2,000 ml/min Pressure Rating:up to 9 bar Accuracy: High accuracy (manufacturer specified) Turndown Ratio: Model dependent (see specifications) Display: Optional display (model dependent) Control: Manual, Profibus, Remote, Universal, Universal relay, Universal+, Universal+ relay
