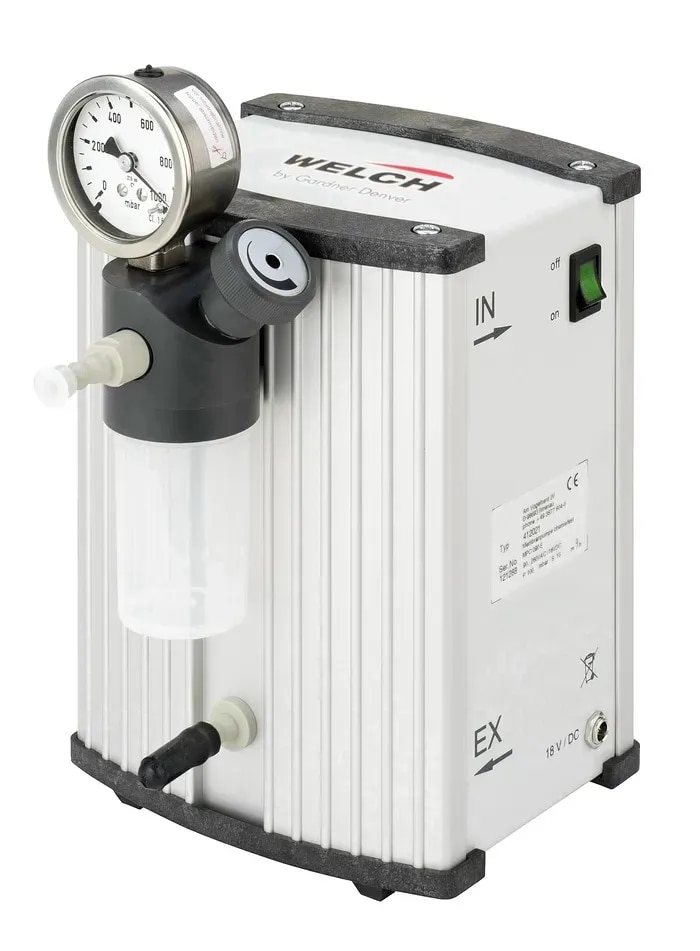

MPC Chemical Duty Pumps MPC 090E

Configured for filtering weak acid/base solutions

Pump comes with inlet regulator and catchpot

Constructed with PEEK valves, and fluorinated wetted surfaces

Oil-less operation for reduced maintenance

Available in 90-260V 50/60Hz

Pumping speed 50/60Hz (m3h): 0.9 / 1.5

Ultimate Pressure (mbar): 100

The Welch Chemical Resistant Diaphragm Pump MPC 090 E combines durability with high efficiency for chemical processes. Learn more about diaphragm pumps by visiting our category page.

Description

Diaphragm pumps for chemical applications - type MPC - are chemically compatible and resistant to aggressive solvents and acid vapors which are common in laboratories. The diaphragms are made out of PTFE. The pump and connection heads are carbon fiber reinforced. Their electrical conductivity prevents electrostatic charging and minimizes the risk of gas mixture igniting inside of the pump. The diaphragm pump MPC 090 E is a two-stage pump. It is compact and functional. Maintenance and service are quick and easy to carry out. The pump operates extremely quietly.

The diaphragm pump MPC 090 E is designed for:

Conveying and compressing neutral and aggressive gases and vapors

Generation of vacuum up to an ultimate pressure <5 mbar

Use in physical and chemical laboratories

Scope of delivery: 2-head chemical diaphragm pump, integrated motor protection switch, hose nozzle DN 8 for hose inner diameter 8 mm, vibration isolating feet, external power supply and device connection cable IEC with plug CEE, UK, US.

Optional: auto adapter for use in the field
