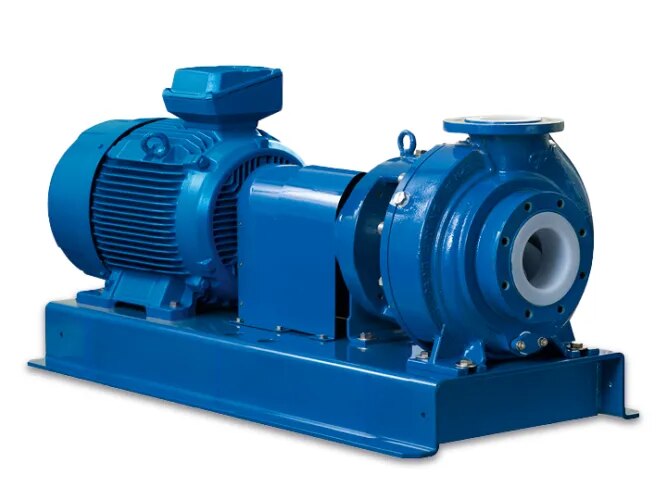

EB – PFA-Lined Double Mechanical Seal Chemical Process Pump

Special features

Metal reinforcement with thick, vacuum-tight, corrosion and diffusion-resistant PFA lining.

Achieves low NPSH values.

Construction

Double mechanical seal

FuturaTef®: ideal for fluids with high solids content and with tendency to crystallisation and/or polymerisation, completely metal free on pump side.

Horizontal installation

Nominal pressure PN 16

Dirt-resistant, open plastic impeller with metal core

Clearance of the impeller can be optimally adjusted from outside

Bearing frame lubricated with oil

Single-stage centrifugal pump

Assembly & repair

Modular system made up of few individual parts

Assembly friendly

Thanks to connection dimensions and performance data according to DIN EN ISO 2858, previous pumps can be easily replaced
