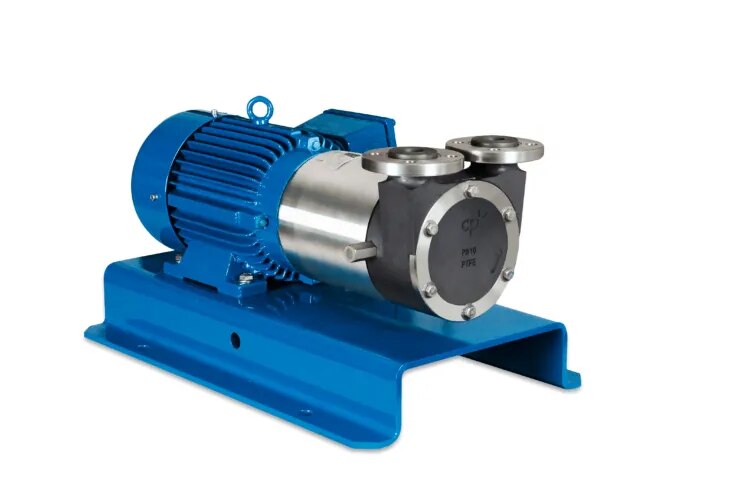

Solid PTFE Self-Priming Magnetic Drive Chemical Process Side Channel Pump

Special features

Thick, vacuum-tight, corrosion and diffusion-resistant solid plastic

Side channel impeller with metal core

Self-priming up to a suction head of 8.5 metres

Corrosion-resistant and hermetically sealed for fluids with a gas content up to 25 %

Accumulations of air in the suction pipe are no problem (=increased operating safety)

No electrostatic charging on the casing by using PTFE with carbon filler

Construction

Compact & virtually free of dead space

No shaft feedthrough & leak-free

Single-part & central bearing

Horizontal installation

Very rugged design

Nominal pressure PN 10

Enormous, solid and durable plain bearing made of pure SSiC

Can be made in PTFE with carbon filler, virgin PTFE, PVDF

Low wear due to axial and radial SSiC bearing

No buffer liquid tank, suction pipe is evacuated independently by means of a vacuum

Not damaged by incorrect rotational direction

Non metallic and eddy-current-free shroud (=reduced energy consumption)

Bump ring prevents damage to the shroud

Can be used as a monoblock, fixed or mobile

Assembly & repair

Modular system made up of few individual parts

Assembly friendly
