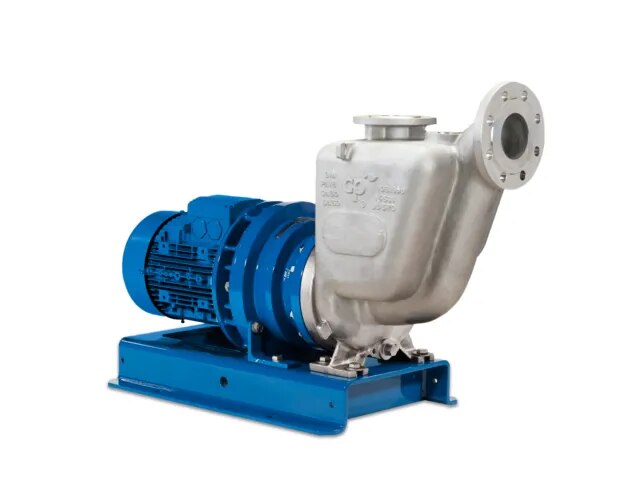

Stainless Steel Self-Priming Magnetic Drive Chemical Process Pump

Special features

Suction tank integrated in the casing (=high operating safety).

Self-priming with a suction head of up to 8.5 m.

Suitable for efficient unloading of tanks (tanker trucks) with no outlet on the tanker floor.

Up to 30% solids concentration and 1 mm particle size can be pumped – depending on the nature of the particles.*

Costruction

Compact & virtually free of dead space

No shaft feedthrough & leak-free

Single-part & central bearing

Low bearing forces due to hydraulically balanced impeller

Internal & external bearing lubrication options

High material flexibility

Eddy-current-free shroud possible (=> reduced energy consumption)

Inverted drive principle

Single-stage centrifugal pump

Heatability

Heating possible

Assembly & repair

Modular system made up of few individual parts

Assembly friendly
