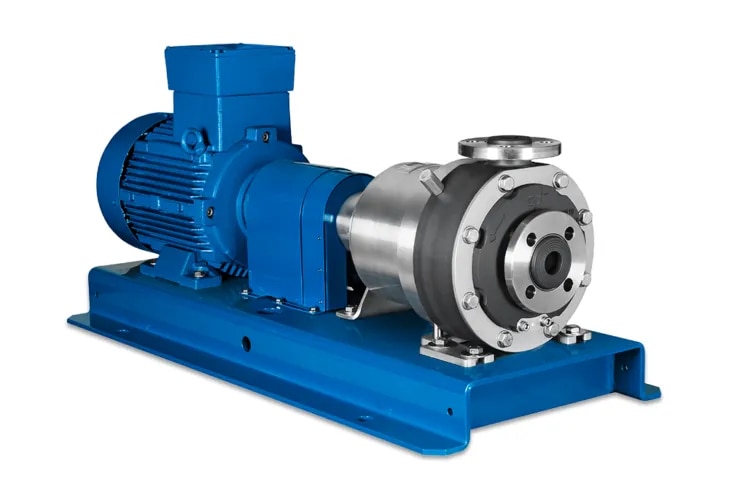

Solid PTFE Magnetic Drive Chemical Process Pump
Description
Special features
Thick, vacuum-tight, corrosion and diffusion-resistant solid plastic
Closed plastic impeller with metal core (=increased strength)
No electrostatic charging on the casing by using PTFE with carbon filler
Up to 5% solids*
Construction
Compact & virtually free of dead space
No shaft feedthrough & leak-free
Single-part & central bearing
Horizontal installation
Pump body made of non-porous bar stock
Rugged and ceramic-compatible bearing design made of pure SSiC
Can be made in PTFE with carbon filler, virginal PTFE, PVDF
Form-fit anti-rotation device (polygonal)
Impeller secured against rotating in the wrong pump direction
Non metallic and eddy-current-free shroud
Single-stage centrifugal pump
Assembly & repair
Modular system made up of few individual parts
Assembly friendly
*In general, media with solids content can be transported, but application-specific verification in advance is necessary.
