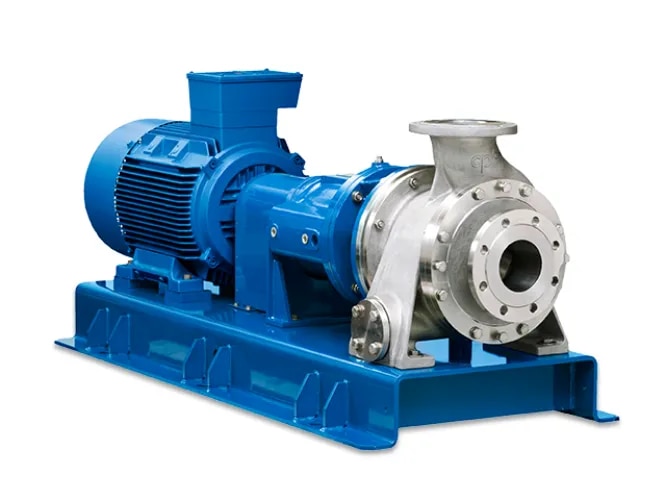

Stainless Steel Mechanical Seal Chemical Process Crushing Pump

Special features

Ideal for high solid contents (up to 40 %).*

Grinds, mixes and pumps multi-phase media simultaneously.

Ideal for pumping coarse suspensions and also grinding soft particles.

Front play between rotor and bushing segment can be optimally adjusted from outside.

Construction

Standard commercially available mechanical seal

Horizontal installation

Nominal pressure up to PN 16 max. (=enables wide application range)

Differently adapted casing liner available depending on grinding level

Rotor fastened diagonally on the shaft leads to an axial and radial acceleration of the medium (=overlapping movements intermix the medium)

Tooth systems on the rotor and on the casing liner reduce the contained solids to a maximum defined particle size.

Assembly & repair

Modular system made up of few individual parts

Assembly friendly

*In general, media with solids content can be transported, but application-specific verification in advance is necessary.
