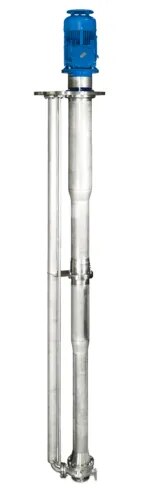

Stainless Steel Magnetic Drive Chemical Process Sump Pump

Special features

Sump pump for submersion depths down to 4 m.

Ball bearings that can be lubricated externally as an option (with patent).

Ideal for unloading tanks with no outlet on the tank floor.

Can be combined with injector for unloading larger containers as a tank unloading system

Solids possible*

Sophisticated bearing flushing offers reserves for difficult applications and high solids concentration in fluids.

Corrosive/toxic media are pumped in total safety (without fluid and vapours escaping into the environment).

Construction

Compact & virtually free of dead space

No shaft feedthrough & leak-free

Single-part & central bearing

No plain bearing carrier

Eddy-current-free shroud possible (=> reduced energy consumption)

Low bearing forces due to hydraulically balanced impeller

Product-lubricated bearing eliminates common weak point on sump pumps

Inverted drive principl

Single-stage centrifugal pump

Heatability

Available with double-wall heatable discharge pipe

Assembly & repair

Modular system made up of few individual parts

Assembly friendly

*In general, media with solids content can be transported, but application-specific verification in advance is necessary.
